Laser projection

VIRTEK is the global leader in laser templating and quality inspection systems. Innovative and patented solutions are used for measuring, assembly, painting, composite lay-up, inspection and reverse engineering. Founded in 1986, Virtek is based in Waterloo, ON, Canada, and has sales and service coverage in the Americas, across Europe, and in Asia Pacific Region. Our flexible, agile systems are designed to improve productivity and quality at a lower cost. Customers have achieved savings of more than 60%.

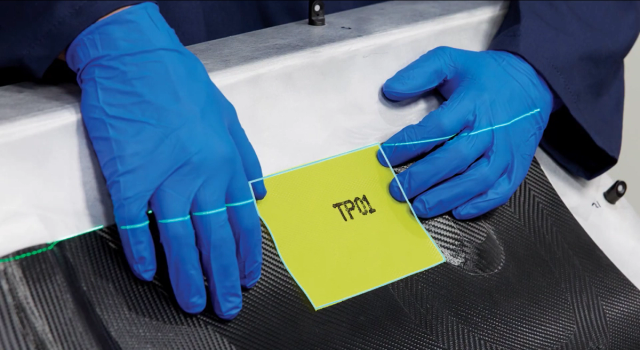

VIRTEK IRIS 3D laser templating and positioning systems accurately project a virtual laser template onto molds and parts to guide operators through the process of part fabrication whether it be ply layup, paint masking, assembly, or part placement.

FlashAlign™

Instant alignment of the part or tool virtually eliminating set up time.

Multi-Tasking
Enables one projector to serve multiple workstations so ply layup on multiple parts can occur in parallel. The new thin client experience allows you to use one Iris 3D license to connect several PCs or tablets to serve as clients.

High Visibility

Provides operators with a brighter, safe laser delivering superior visibility even in the brightest work environments.

Simplified Software Interface

Reduced training & fewer operator errors, simplified operation and administration.

Projected Cross Hair

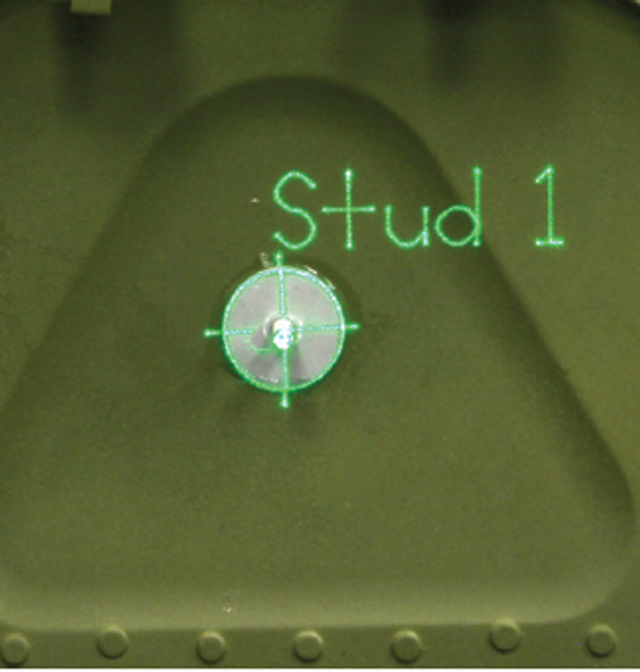

Automatically project crosshairs to indicate drill locations, punch locations, assembly positions. Crosshairs work on both flat and curved surfaces.

Eliminate Manual Measuring, Marking And Fitting

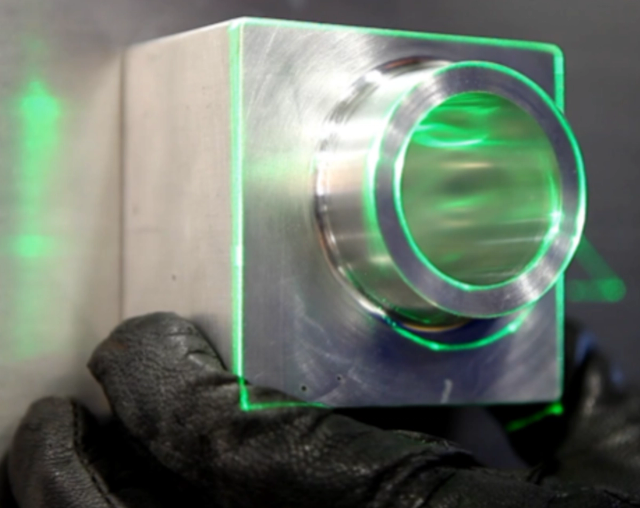

Part position is taken directly from CAD data and laser projected onto the workpiece for exact as-designed placement.

Reduce Human Error And Minimize Repair Costs

Eliminates differences between "as-built" and "as designed".

Reduce Labor Costs

Fewer assemblers and quality inspectors involved in the process. Immediate verification of work progress and accuracy.

Implement Rapid Design Changes

Assemblers are always working with the most current CAD file. No need to wait weeks for templates modifications.

Reduce Templates & Storage

Decrease production expenses and delays caused by using standard templates.

Accelerate Workflow & Avoid Production Delays

Open the work order, and the system will begin projecting. Start working right away. Significant time savings and increased workflow productivity.

We continue to build on this legacy by working side by side with customers to understand how to configure our suite of innovative laser projection and quality inspection solutions that address production and assembly needs for companies of all sizes.

We have the largest support team in the industry, offering unmatched expertise and commitment to customer service.

Have a unique application? Perfect, our team of experts globally can set up a live remote demonstration with you and your counterparts at your convenience at any time.

www.virtekvision.com

DOWNLOAD DATASHEET
