EN 14399 / DIN 6914 HV/HR SETS | EN 15048-1 SB SETS

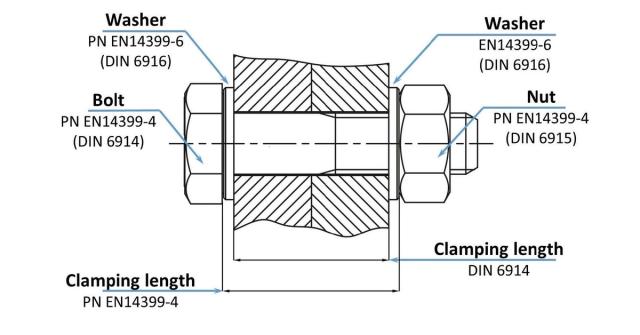

EN 14399 HV/HR sets for prestressed connections

Screw: EN 14399-4 / 14399-3 / DIN 6914

Nut: EN 14399-4 / 14399-3 / DIN 6915

Two washers: EN 14399-6 / DIN 6916

Material and class: 8.8 / 10.9

Coating: hot-dip galvanized [HDG]

Perfect for steel structures. Available in various sizes and configurations. Guarantee of solid and durable connections.

Screw: full thread DIN 933 / ISO 4017 or partial thread DIN 931 / ISO 4014

Nut: DIN 934 / ISO 4032

Two washers: ISO 7089, 7090, 7091, 7092 with the hardness of 100HV, 200HV, 300HV

Material and class: 4.6 / 5.6 / 8.8 / 10.9

Coating: white zinc plated/ hot-dip galvanized [HDG]

Solid and durable sets ensuring safe connections. Choose quality and reliability with our SB sets for non-prestressed connections.
